Lift your vehicle with Red Springs suspension kit

Give your Ford an aggressive, good looks while providing enough ground clearance to run up bigger tyres with Red Springs 2" suspension lift kit. This easy-to-install kit offers a total transformation, giving your Ford a more commanding presence while retaining a smooth factory-like ride. Like all Red Spring products, the kit has been designed, manufactured and tested for extreme harsh heavy duty off-road applications with comfort and firm ride handling concepts in mind.

Progressive rear coil springs and RS-HDT4 shocks

Progressive springs combine greater driving comfort with safe handling even in extreme situations. Depending on the degree of deflection, they have different operating characteristics. Their special construction allows for smooth ride, and when needed, it will ensure hard suspension work.

Nitrogen gas charged RS-HDT4 shocks have a 4-steps adjustable damping control knob for even greater ride comfort, and is useful both on tough off-road terrain and on the road. Twintube construction provides additional protection. The product has a special coating that protects against rust even better.

Specs:

• Easy bolt-on installation
• Increased ground clearance
• Clears up for bigger tires,Improved stability highways / paved road

Shock specs:

• Seamless eye bush - 360 degrees robotic welded onto piston shaft fr maximum strength and joint durability for off-roade use
• Durable dust protector - to prevent dust and other foreign materials entering the inner damping cylinder for maximum durability
• Nitrogen gas charged - designed to prevent shock fading and for enhanced damping control
• Hard-chromed piston shaft - 18mm precision induction - hardened shaft for maximum durability and strength
• Oven cured coating - for maximum rust corrosion resistance and protection
• Fun and flexible damping valve control - 4-steps adjustable to suit any driver's handling dynamics needs. Made from high quality anodised aluminium for maximum rust resistance
• Multi-layer heavy duty seal - prevent oil leakage and dirt penetration into inner shock cylinder for maximum durability
• Outer reservoir cylinder - 57mm seamless strong cylinder construction suitable for heavy duty off-road application
• Sintered piston with teflon lining - 35mm heavy duty piston design for maximum ride comfort and precise smooth piston movement
• Custom designed rebound valve - improved ride comfort and precise rebound damping control
• Inner damping cylinder - twintube construction to protect and prevent any dents caused by external factors for precise piston movements
• Compression valve - custom designed for precised oil damping control

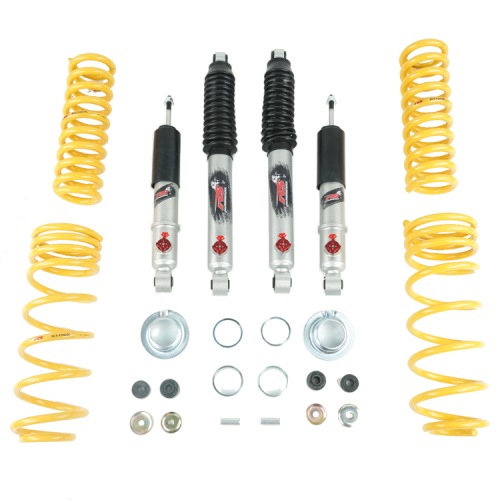

In the box:

• Front coil springs
• Front shocks
• Rear progressive coil springs
• Rear shocks

Loading:

• Front: 50mm with 0-50kg load
• Rear: 40mm with 0-100kg load

Notes:

• Fits Double Cab models ONLY
• Fits to:Navara 15-20
